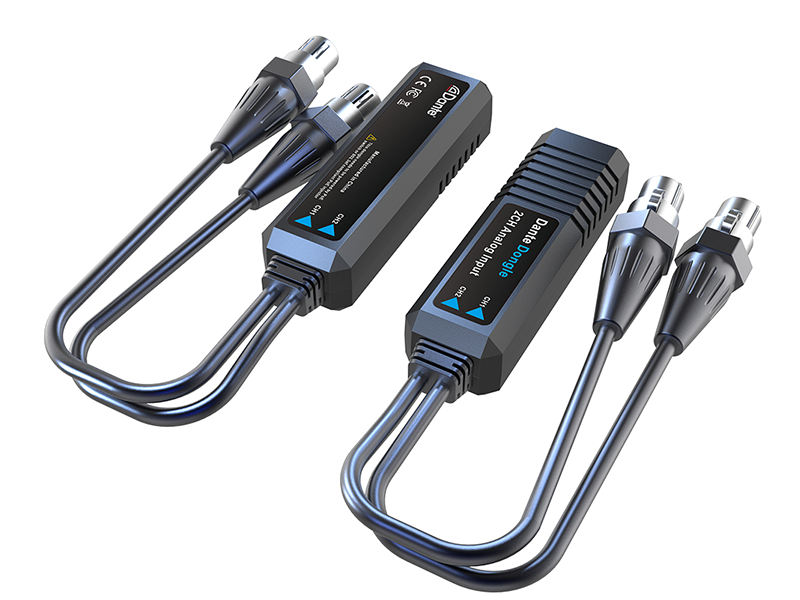

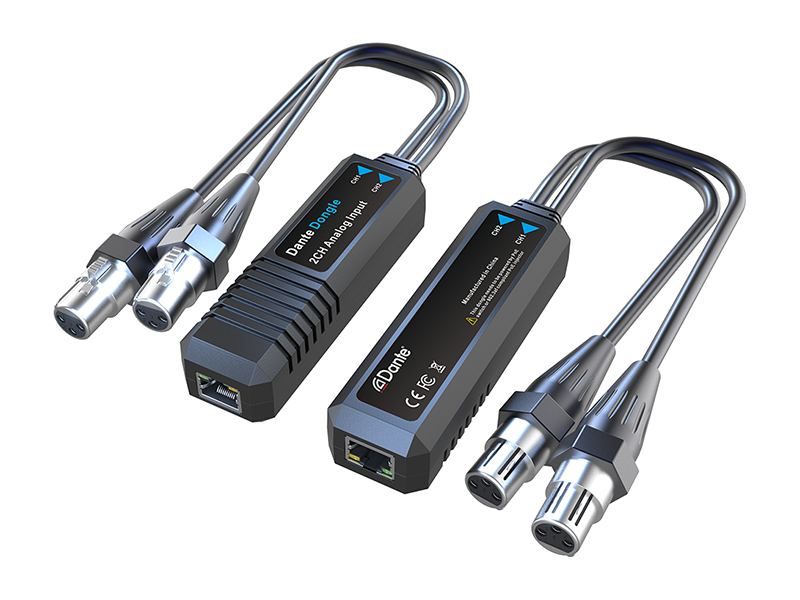

Dante Dongle XLR to Dante 2CH Converter
Dante Dongle XLR to Dante 2CH Converter
The DAN-D5B is a XLR to Dante 2CH converter. It inputs audio via the XLR and transmits data via the Dante interface. Users can control and distribute audio through the Dante Controller. Its compact and
portable design makes it suitable for use in various scenarios.
-
XLR audio input.
-
Supports AES67 protocol.
-
Controllable via Dante Controller.
-
Powered by PoE or DC 5V.
Dante
Sample Rate 44.1/48/88.2/96
kHz
Bit Depth 24-bit
Model Name DAN-D5B
Protocol Support AES67
Power IEEE 802.3af
PoE
Audio
Frequency
Response
20Hz-20kHz,
±0.5dB
THD+N < 0.01%@
+4dBu
SNR Dynamic
Range Crosstalk General
Power Operation
Temperature
Storage
Temperature Power
Consumption Dimension
(L*W*H)
Net Weight >100dB
>100dB
<-100dB
DC 5V 3A
-5℃ ~ +55℃
-25℃ ~ +70℃
2.35W (Max)
127x 53 x 26
mm
280g
Packing List
- 1 x DAN-D5B
- 1 x User Manual
