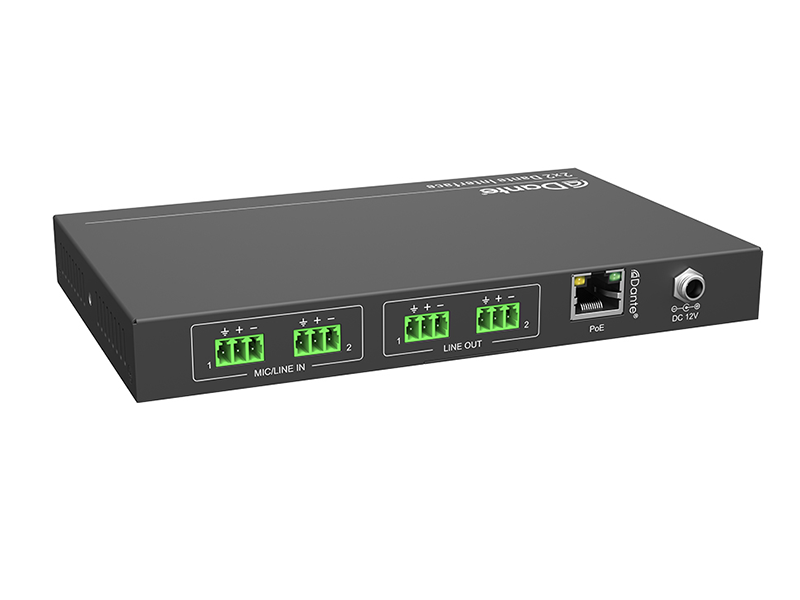

Dante Surface Mount 2x2 Dante/AES67 Interface
DAN-B202 2 x 2 audio channels of Dante audio into networked AV systems, each input features a 48V phantom power option
The DAN-B202 is a Dante network audio interface allowing users to integrate up to 2 x 2 audio channels of Dante audio into networked AV systems, each input features a 48V phantom power option. The product also supports PoE (IEEE802.3af) power capability and a small form factor that makes it easy to put Dante connectivity wherever it’s needed and it can be close to the audio source or sink to eliminate the need for costly and interference-prone analog wiring.
- 2 analog inputs and 2 analog outputs for line / microphone level.
- Supports adjusting the gain per input from 0 ~ +48dB.
- Output volume control from -60dB to 0dB.
- 48V phantom power per input channel.
- Powered by PoE (IEEE802.3af).
- Supports 44.1k or 48k audio sample rate.
- Controllable by Dante controller and web-UI.
| Input |
| Input (2) MIC/LINE IN |
| Input Connector (2) 3-pin Green Terminal Blocks |
| Phantom Power 48V, software selectable for each input |
| Output |
| Output (2) LINE OUT |
| Output |
| Connector (2) 3-pin Green Terminal Blocks |
| Output Type Balanced line level with automatic muting on loss of Dante signal |
| Audio Performance |
| Gain Input: 0 ~ +48dB, 6dB per step |
| Output: -60 ~ 0dB, 1dB per step |
| Max Level Input: +18dBu @ 0dB input gain |
| Output: +18dBu @ 0dB output gain |
| Input |
| Impendence >1.8kΩ |
| Effective Input |
| Noise (EIN) -119dB @ 48dB gain |
| Output Noise <-79dBu @ 0dB gain |
| THD <0.05% at any gain |
| Sample Rate 44.1kHz or 48kHz |
| Control |
| Control Port (1) Dante Network |
| Control |
| Connector (1) RJ45 |
| General |
| External Power |
| Supply Input: AC 100~240V, 50/60Hz; Output: 12V DC 1A |
| Operation |
| Temperature -10℃ ~ +55℃ |
| Storage |
| Temperature -25℃ ~ +70℃ |
| Relative Humility 10%-90% |
| Dimension |
| (W*H*D) 185mm x 115mm x 22mm |
| Net Weight 500g |
Packing List
-
1x DAN-B202
-
2x Mounting ears with 4 screws
-
1x User Manual
