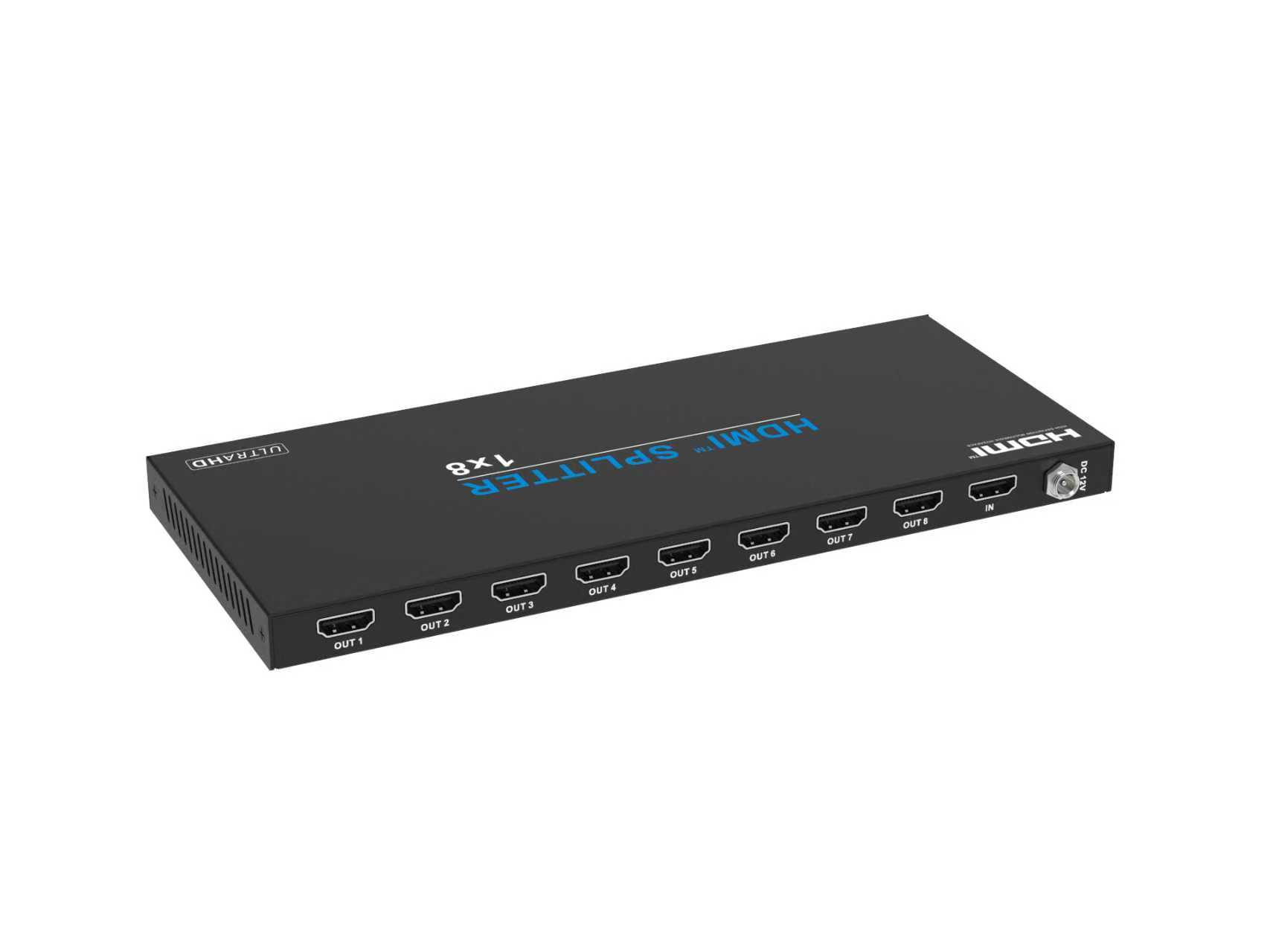

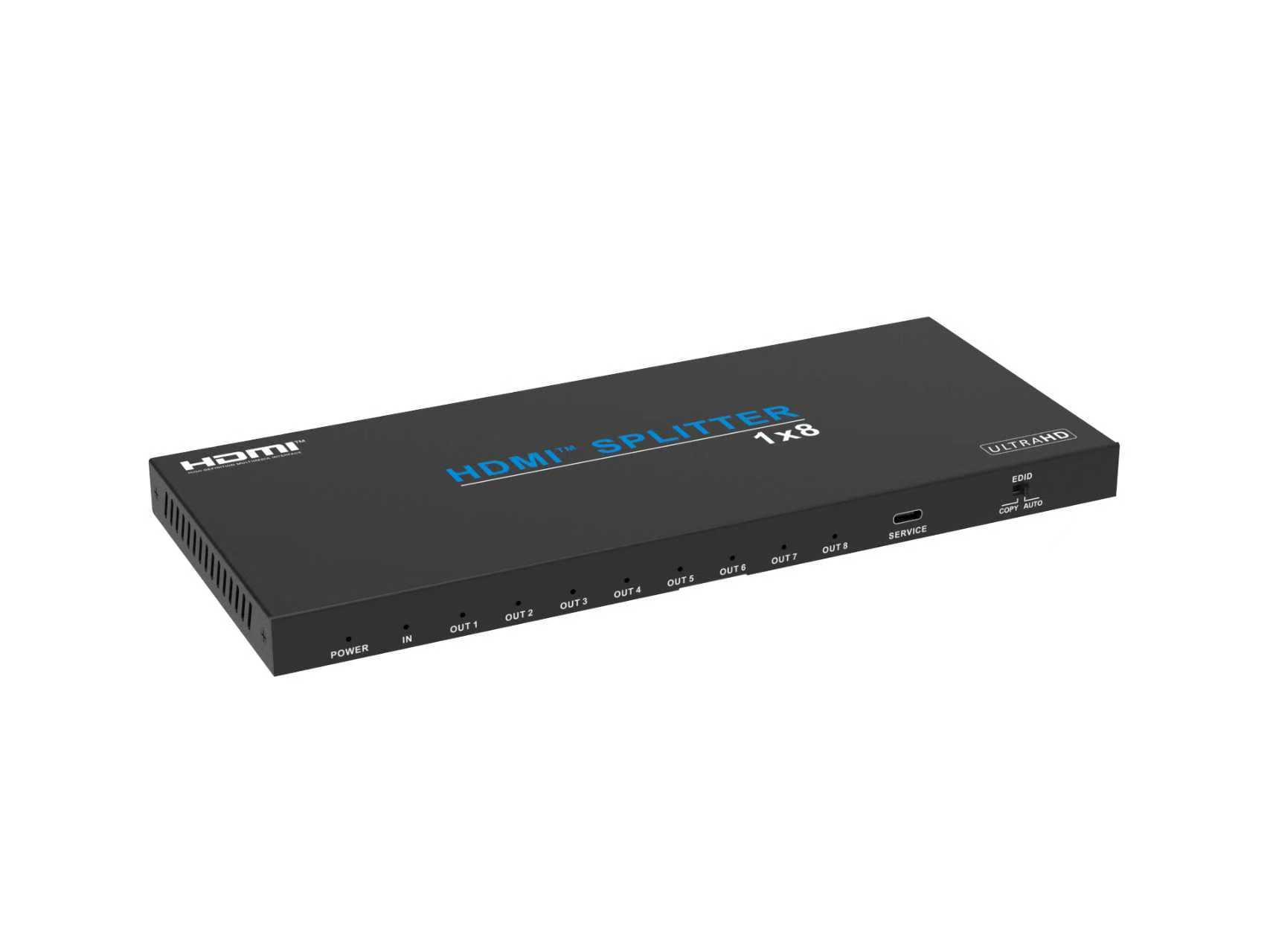

HDMI 2.0 4K 60 Hz 1x8 HDMI Splitter
HDMI 2.0 4K 60 Hz 1x8 Splitter with 4K 60Hz 4:4:4, EDID

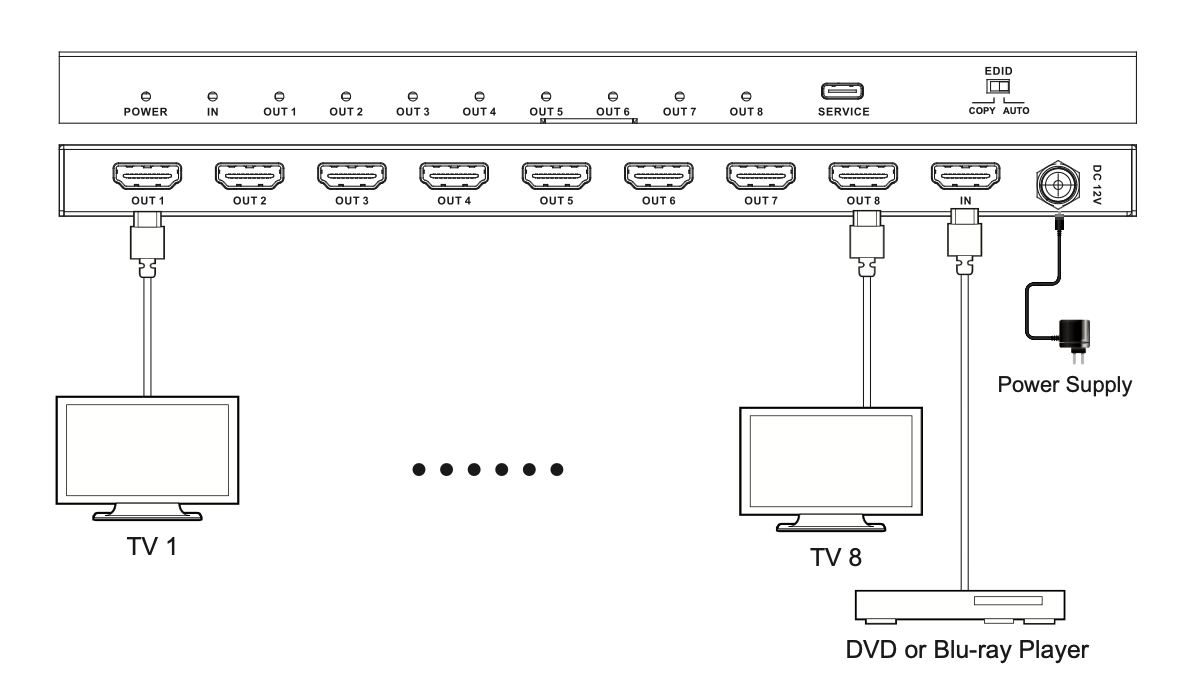

This HDMI™ 1×8 Splitter designed with 1x HDMI™ input and 8x HDMI™ output, can distribute one HDMI™ signal source to eight display devices simultaneously and quickly. Video resolution is up to 4K@60Hz 4:4:4. It supports advanced EDID management, including two EDID modes: copy and auto. The device is widely used in multimedia conference halls, television teaching, large-screen display and other applications.
-
HDCP 2.2 compliant
-
Video resolution is up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0
-
Audio format up to PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
-
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
-
Support resolution downscaling from 4K to 1080p on each output
-
Support CEC on HDMI™ OUT 1 port
-
Advanced EDID management
-
Compact design for easy and flexible installation
| Technical |
| HDMI™ Compliance HDMI™ 2.0 |
| HDCP Compliance HDCP 2.2 |
| Video Bandwidth 18Gbps |
| Video Resolution |
| (Input & Output) |
| 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
| Color Depth 8-bit,10-bit,12-bit |
| Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2 |
| Audio Formats |
| PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, |
| DTS-HD Master Audio, Dolby Atmos, DTS:X |
| HDR HDR, HDR10, HDR10+, Dolby Vision, HLG |
| ESD Protection |
| IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |

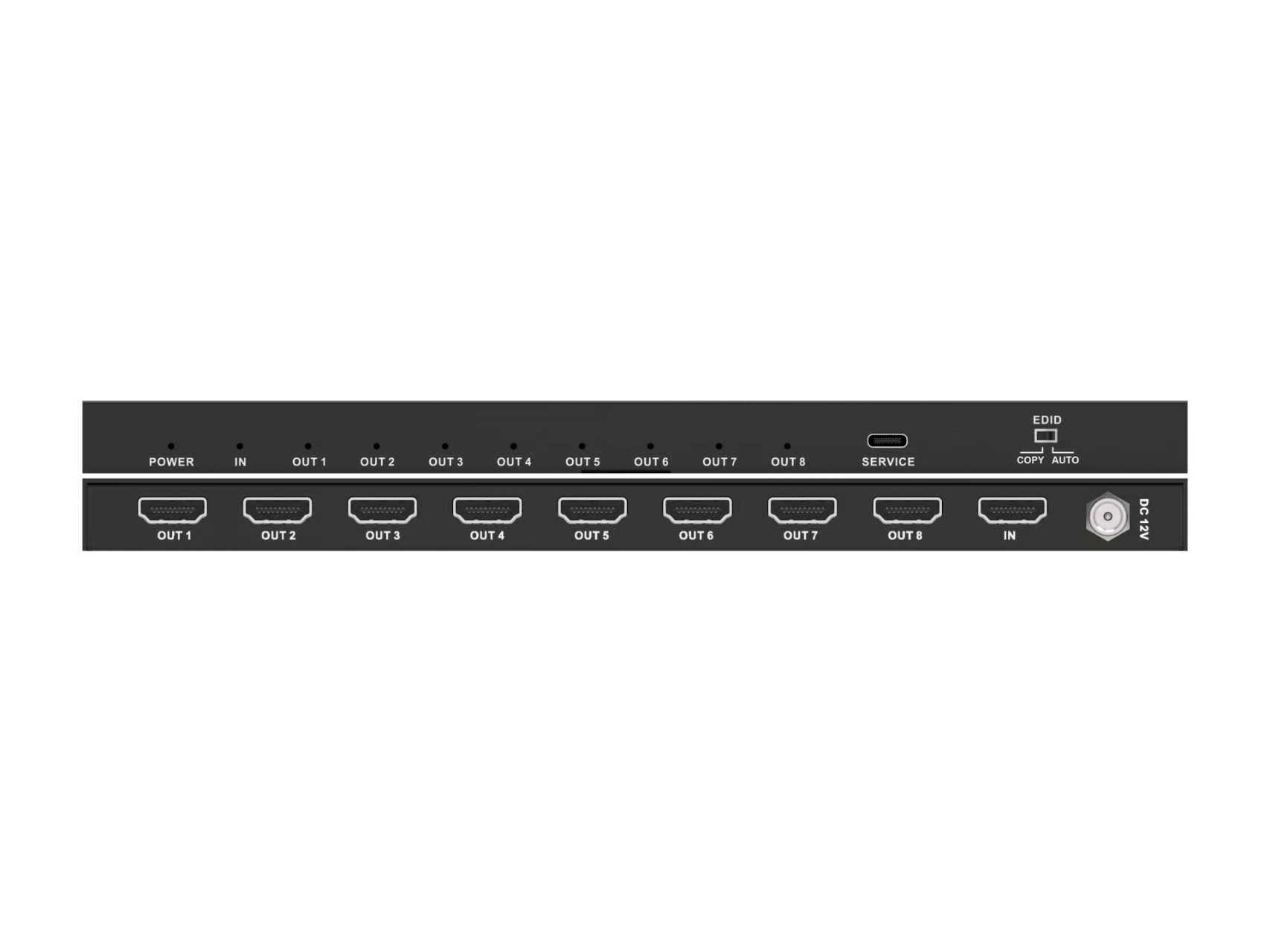

| Connection |
| Input |
| 1× IN [HDMI™ Type A, 19-pin female] |
| Output |
| 8× OUT [HDMI™ Type A, 19-pin female] |
| Control |
| 1× SERVICE [USB Type C, update port] |
| Mechanical |
| Housing Metal Enclosure |
| Color |
| Black |
| Dimensions |
| 242mm [W] × 102mm [D] × 16mm [H] |
| Weight |
| 588g |
| Power Supply |
| Input: AC 100-240V 50/60Hz, Output: DC 12V/1A |
| (US/EU standards, CE/FCC/UL certified) |
| Power Consumption 6.4W (Max) |
| Operation |
| Temperature 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity |
| 20%~80% relative humidity, non-condensing |
| Storage Humidity |
| 10%~90% relative humidity, non-condensing |
- 1× 4K60 1×8 HDMI™ Splitter
- 1× 12V/1A Multinational Locking Power Supply
- 1× User Manual
