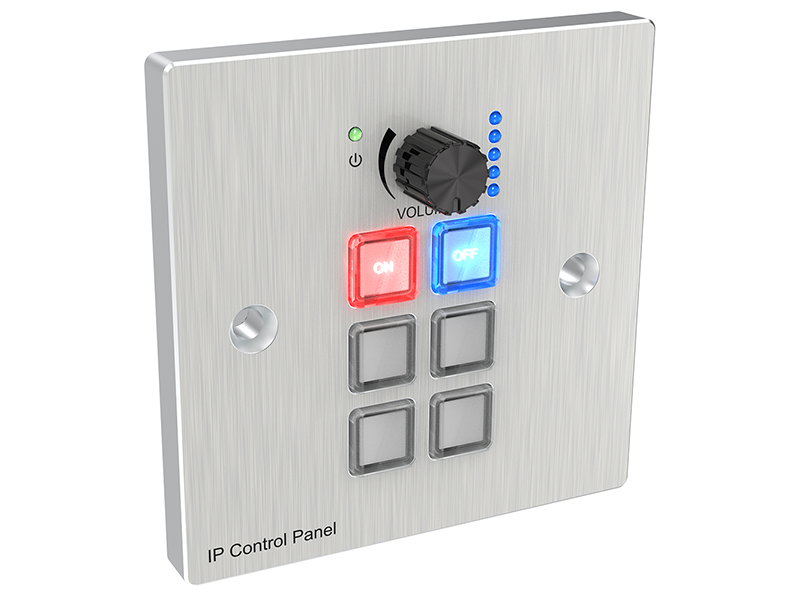

Programmable Wall Plate Control Panel 6 Buttons IP Control Panel
Programmable Wall Plate Control Panel 6 Buttons and Volume Control Knob IP Control Panel, 2 RS232, TCP/IP control for programming.
The Wallplate Control Panel has (2) built-in programmable RS232 connectors and (2) Infrared (IR) connectors. The Programmable Control Panel can fully control the compatible switches, as well as third-party devices such as matrix switcher, compact scaler switcher, projectors, screens, etc. Use the device for presentations in showrooms, classrooms, and boardrooms.
-
Six customizable control buttons;
-
One volume control knob;
-
Support IR, RS232 and TCP/IP control;
-
Can be controlled and configured via GUI;
-
Can be powered by PoE;

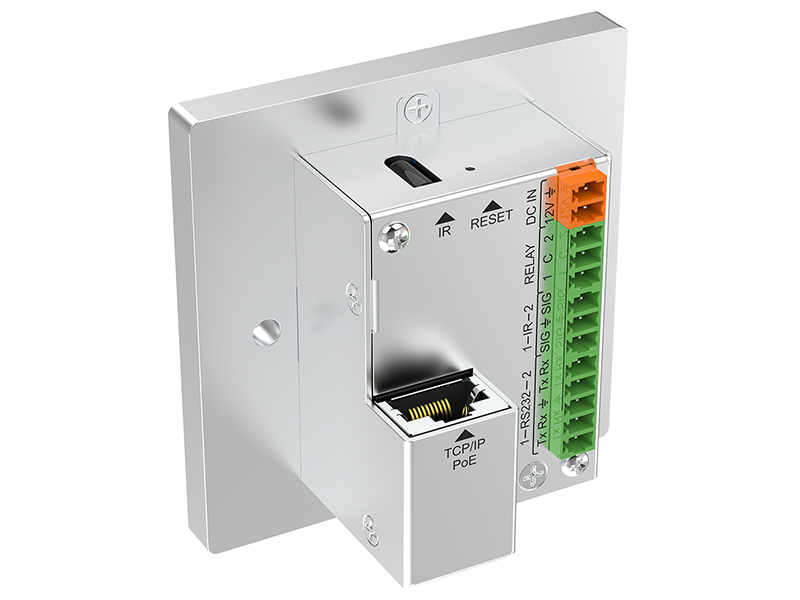

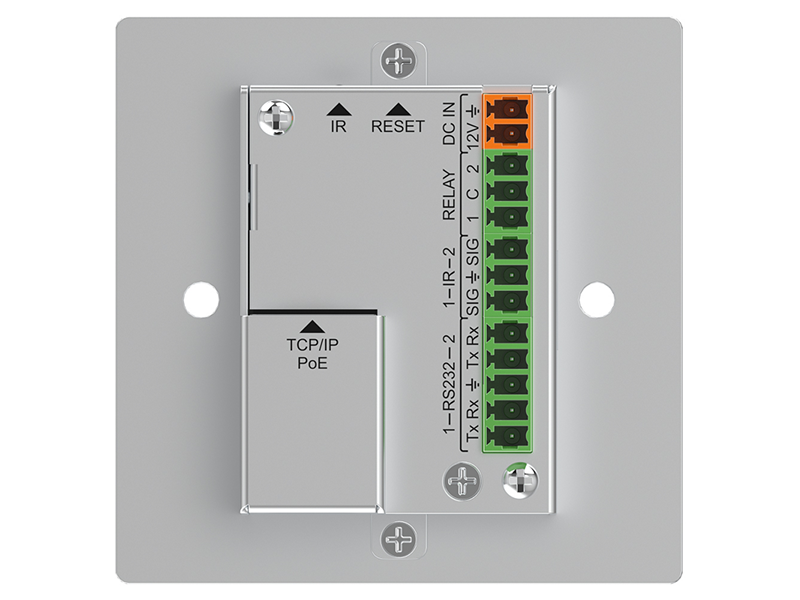

Program Port TCP/IP
Output Port 2 x RS232, 2 x IR, 2 x Relay
Output Connector 2 x 3-Pin Pluggable terminal blocks,
2 x 2-Pin Pluggable terminal blocks,
Baud Rate 9600 baud, supports 9600,19200,38400,57600,115200
Power Consumption 2.5W (Max)
Operation Temperature 0 ~ +40℃
Storage Temperature -10 ~ +55℃
Relative Humidity 10% ~ 90%
Power Supply Input: 12VDC, PoE
Net Weight 195g
Case Dimensions （W*H*D） 86mm x 86mm x 50.5mm
- 1 x WP6P–EU
- 1 x 2-Pin Pluggable terminal blocks
- 6 x Button caps
- 1 x 5-Pin Pluggable terminal block
- 2 x 3-Pin Pluggable terminal block
- 1 x Button label
- 1 x User Manual
