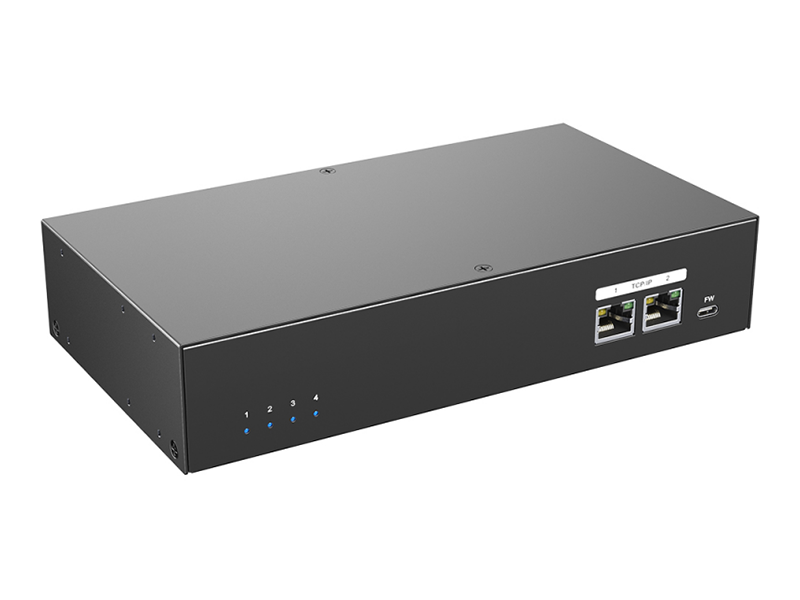

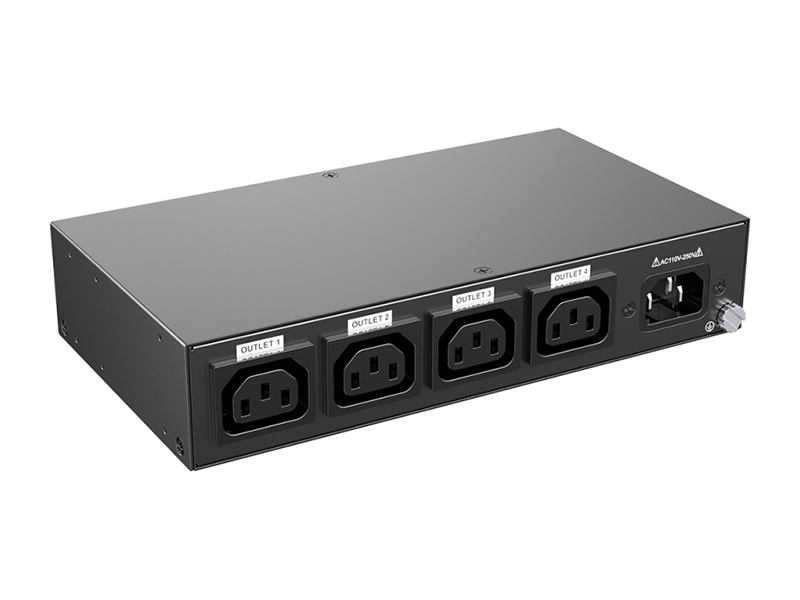

4 Ports Power Controller
4 Ports Power Controller with redundant TCP/IP port.

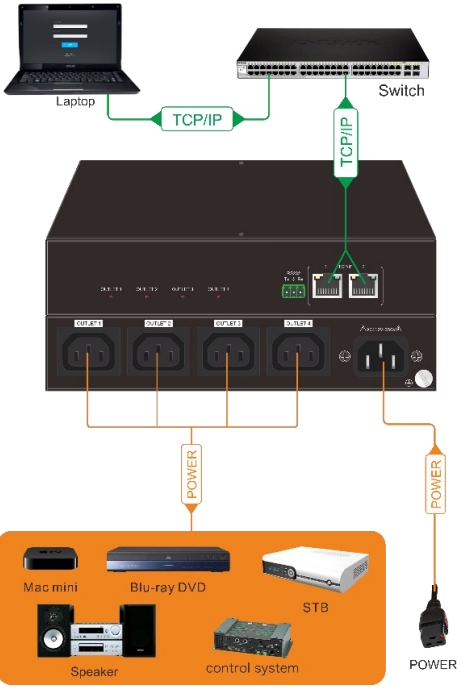

4 Ports Power Controller with redundant TCP/IP port. The controller is designed for power control and metering. It supports up to AC110V~250V 10A IEC C14 power input and four 10A IEC C13 outlets. The controller supports power control and metering via TCP/IP, which provide multiple network protocols and IoT protocols.
-
Switch control, voltage, current and power consumption metering.
-
2x TCP/IP network ports to provide continuous network services.
-
Overload protection, wiring error protection, remote login verification.
-
Supports multiple network protocols and IoT protocols.
-
Controllable via RS-232 and Web-GUI.
Input
Voltage AC 110-250V
Frequency 50/60Hz
Current Max. 10A
Connector 1x IEC C14
Output
Voltage AC 110-250V
Frequency 50/60Hz
Current Max. 10A per port
Connector 4x IEC C13
Control
Mode TCP/IP, RS-232
Connector 2x RJ45, 1x 3-pin phoenix terminal
General
Voltage Range 110-250V
Current Range 0-10A
Frequency Range 45-65Hz
Power Factor 0-1
Operation Temperature -5℃ ~ +55℃
Storage Temperature -20℃ ~ +70℃
Relative Humility 0% ~ 80%
Standby Power
Consumption
1.53W
Dimension (W*H*D) 218mm x 42.5mm x 153mm
Net Weight 970g
-
1x PC-410
-
1x RS-232 Cable
-
1x Power Cable (AU/ EU/ UK/ US)
-
2x Mounting Ears and 4x Screws
-
4x Rubber Feet
-
1x User Manual
