HDMI 4K 30 Hz and HDMI 14.0 Standard HDBaseT Extender
4K 30Hz (40m) and 1080P (70m) HDMI 1.4 standart 10.2Gbps HDMI over HDBaseT Extender IR & PoC

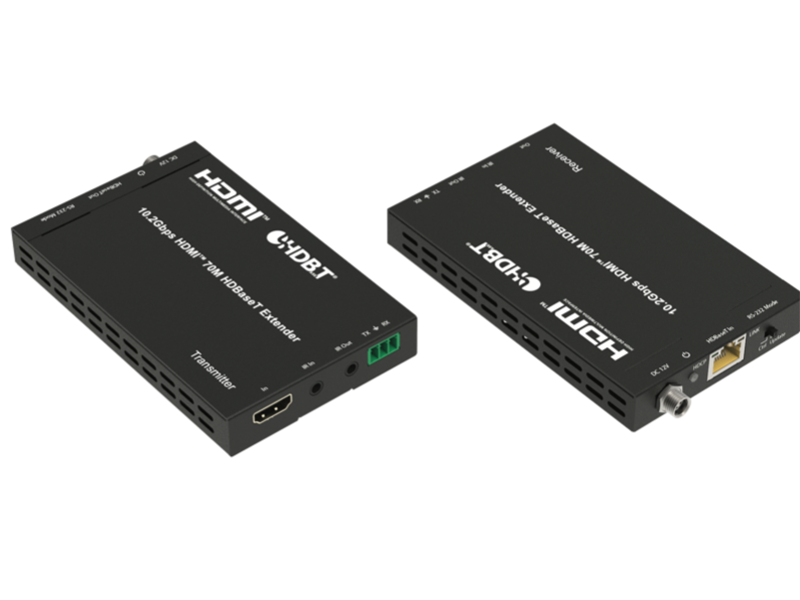

This HDMI 70M HDBaseT Extender uses HDBaseT technology to extend the HDMI signal and bi-directional IR control signal to 70m via a single Cat5e/6 cable. This product converts the HDMI signal into a standard HDBaseT signal and then transmits it through the LAN cable. It can easily control the signal source device or display device from the remote end via bi-directional IR signal pass-through. It supports RS-232 signal pass-through, and the resolution is up to 4K2K@30Hz. This product can be widely used in video conference system, multimedia broadcasting, HDMI signal extension and other fields.
- HDCP 2.2 compliant
- Support video resolution up to 4K2K@30Hz, as specified in HDMI 1.4
- Support 10.2Gbps video bandwidth
- The maximum transmission distance via a single CAT5e/6 cable is: 70 meters: 1080P@60Hz/36bit; 3D 1080P@30Hz/36bit; 40 meters: 1080P@60Hz/48bit; 1080P@120Hz/24bit; 3D 1080P@60Hz/36bit; 4K2K@30Hz/24bit.
- Support POC (Power Over Cable) function, it means that either the transmitter or receiver is connected to 12V/1A power supply, the other doesn’t need power supply.
- With bi-directional IR and RS-232 control signal pass-through
- Compact design for easy and flexible installation
Technical
- HDMI Compliance HDMI 1.4
- HDCP Compliance HDCP 2.2
- Bandwidth 10.2Gbps
- Video Resolutions Up to 4K2K@30Hz 4:4:4
- Transmission Mode HDBaseT
- Transmission Distance 1080P≤70m; 4K×2K≤40m
- ESD Protection IEC 61000-4-2:
- ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

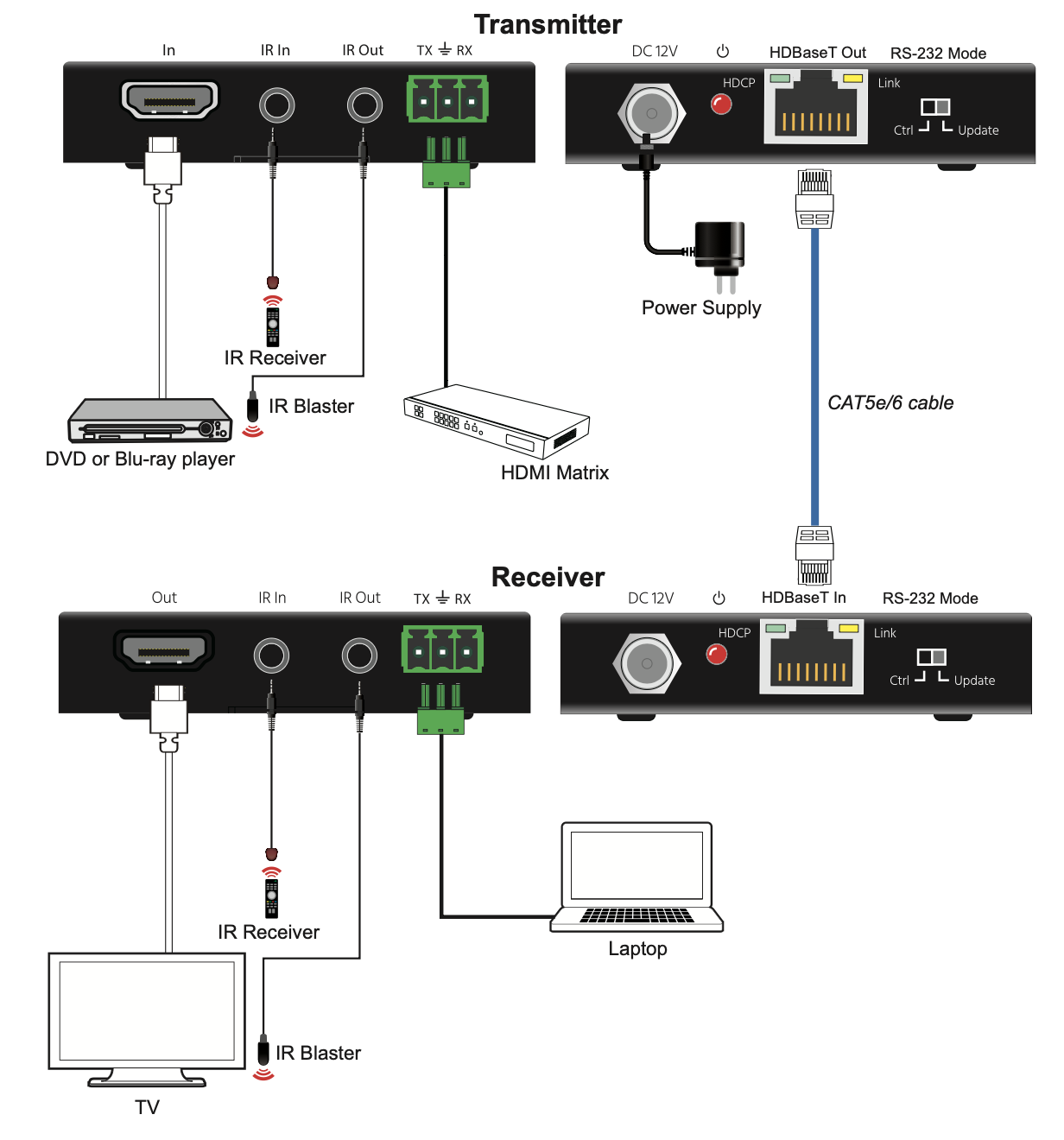

Connection

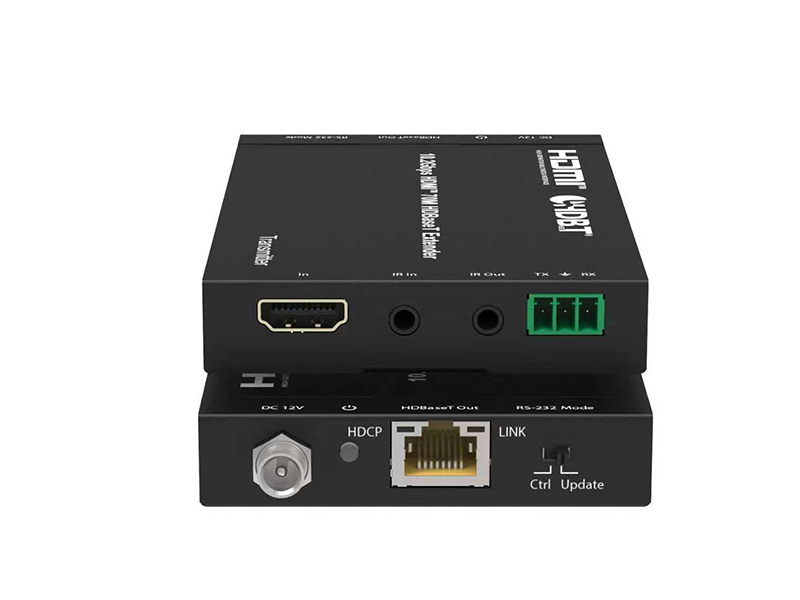

Transmitter ports
- Input: 1× In [HDMI Type A, 19-pin female]
- Output: 1× HDBaseT Out [RJ45]
- Control: 1× IR In [3.5mm stereo mini-jack]
- 1× IR Out [3.5mm stereo mini-jack]
- 1× RS-232 [phoenix connector]

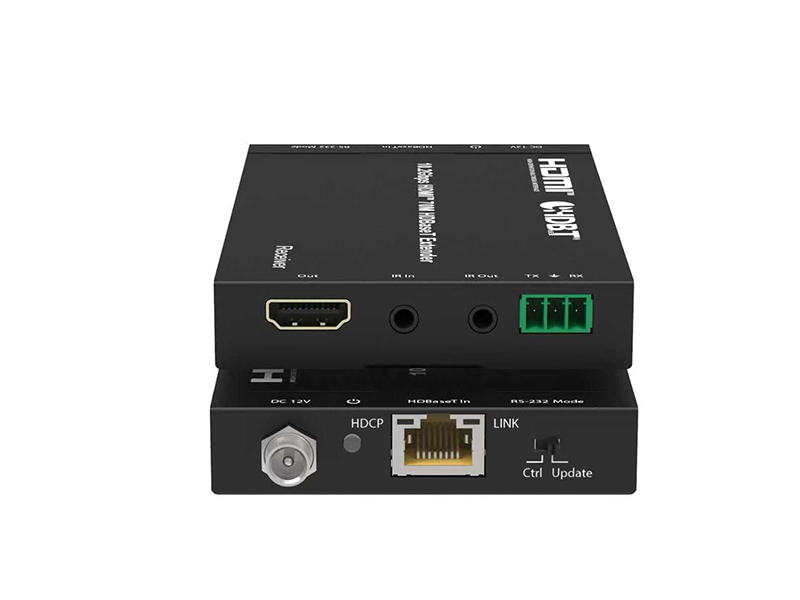

Receiver ports
- Input: 1× HDBaseT In [RJ45]
- Output: 1× Out [HDMI Type A, 19-pin female]
- Control: 1× IR In [3.5mm stereo mini-jack]
- 1× IR Out [3.5mm stereo mini-jack]
- 1× RS-232 [phoenix connector]
Mechanical
- Housing
- Metal Enclosure
- Color Black
- Dimensions
- Transmitter/Receiver: 120mm (W)×74mm (D)×16mm (H)
Weight
- Transmitter/Receiver: 240g
Power Supply
- Input: AC100~240V 50/60Hz
- Output: DC12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
- 10W (Max)
Operating
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
① 1× HDMI 70M HDBaseT Extender (Transmitter)
② 1× HDMI 70M HDBaseT Extender (Receiver)
③ 1× Power Adaptor (12V DC,1A)
④ 1× IR Receiver Cable (1.5 meters)
⑤ 1× IR Blaster Cable (1.5 meters)
⑥ 4× Mounting Ears
⑦ 2× 3-pin Phoenix Connectors
⑧ 1× User Manual
