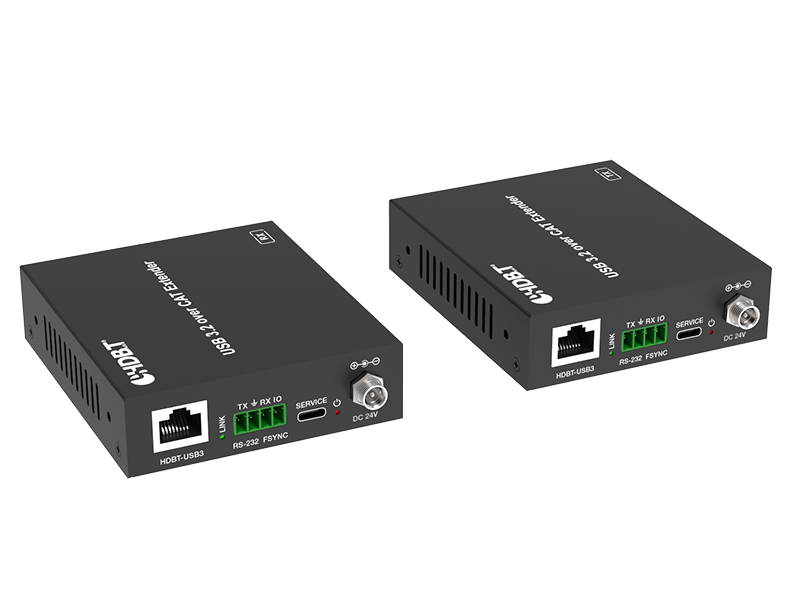

USB 3.2 Gen1 USB-C, USB-A, USB-B Extender up to 100 Meter over a single CAT6a
USB 3.2 Gen1 1 x USB-C, 2 x USB-A, 1 x USB-B from Transmitter, 2 x USB-A 2 x USB - C and RS232 Passthrough Extender up to 100 Meter over a single CAT6a

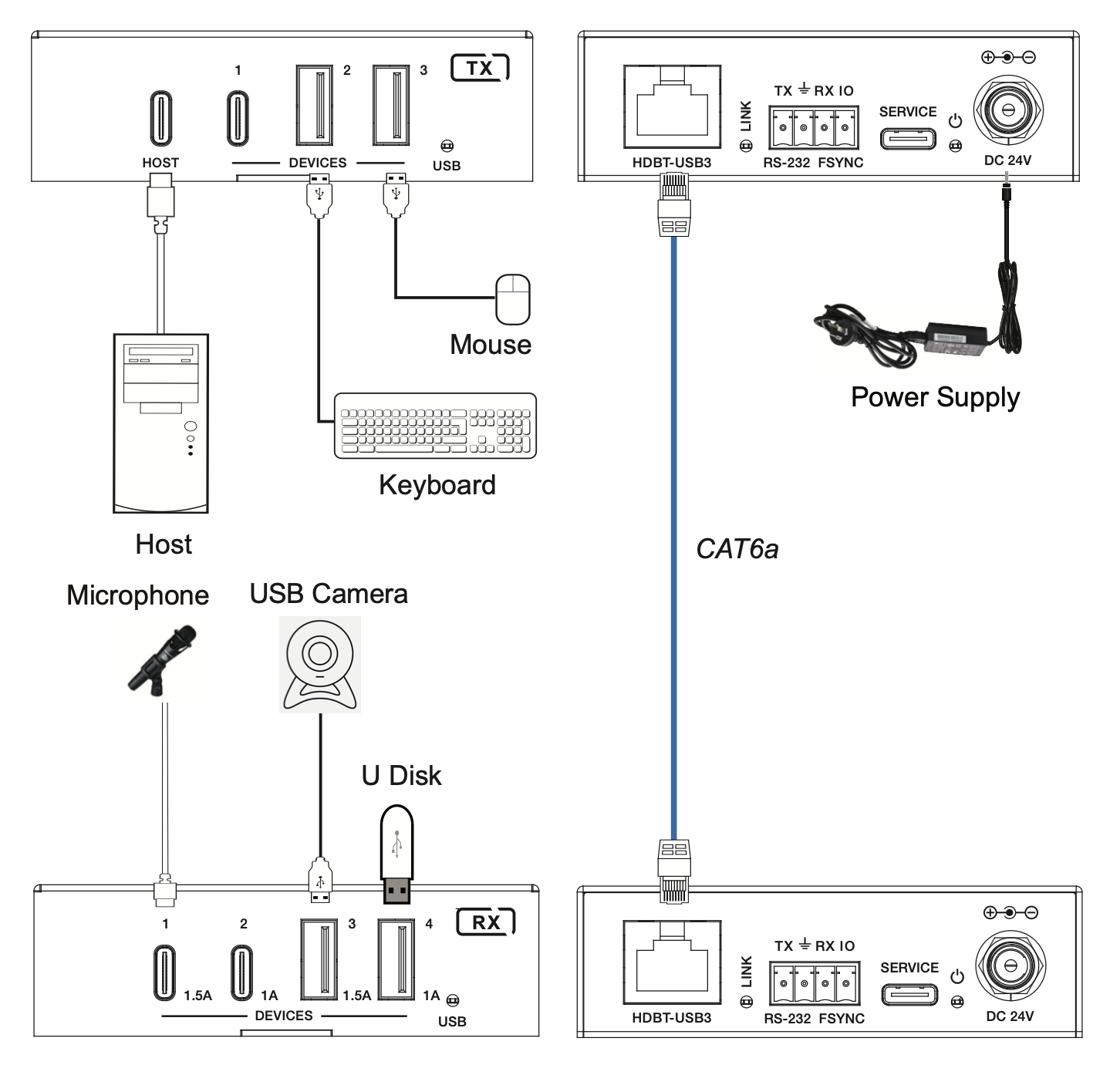

This USB Extender can extend USB 3.2 Gen 1 signal to a distance up to 100m/328ft via a single CAT6a cable. The transmitter features one USB-C host port, one USB-C and two USB-A device ports. The receiver features two USB-C and two USB-A device ports. Bi-directional 24V PoC (Power over Cable) function allows user to only supply power to either the transmitter or the receiver. It can be widely used for long distance USB signal transmission between USB sources and devices like webcams, PTZ cameras, keyboards, mouse devices, USB microphones, flash sticks, printers, scanners, touch panel displays and other USB devices.
- Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
- USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Hardware acceleration for isochronous and bulk transfer

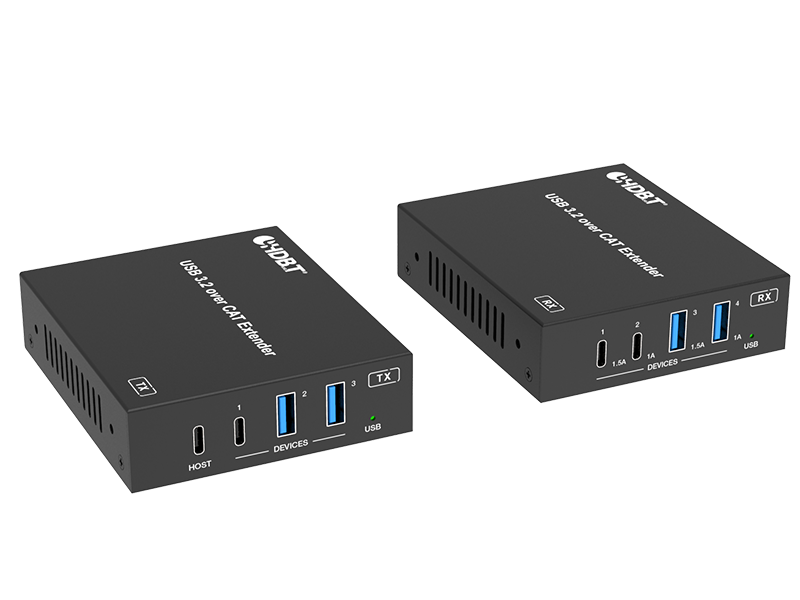

- TX features 1x USB-C host port, 1x USB-C and 2x USB-A device ports
- RX features 2x USB-C (1x 5V@1A and 1x 5V@1.5A) and 2x USB-A device ports (1x 5V@1A and 1x 5V@1.5A)
- Support firmware upgrade via USB-C service port
- Support FSYNC GPIO pass-through for industry camera use
- Support bi-directional 24V PoC (Power over Cable), when TX or RX gets power, the other end does not need an external power supply
- Plug-and-play with no drivers, downloads, or software required
| Technical |
| USB Protocol USB 3.2 Gen 1 |
| Transmission Rate Up to 5Gbps |
| Transmission Distance 100m/328ft via CAT6a (F/FTP) cable |
| 1.5m/4.9ft via USB cable |
| ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connections |

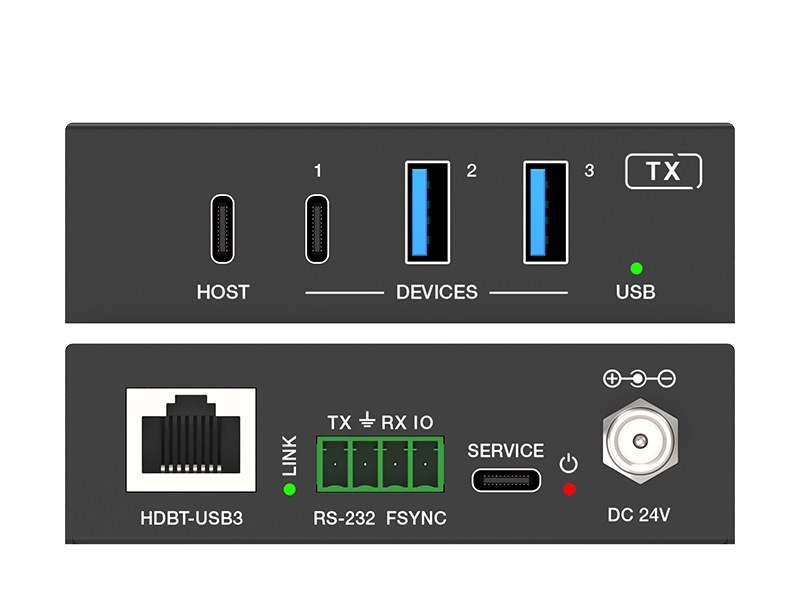

| Transmitter |
| Inputs: 1× HOST [USB Type C, 24-pin female] |
| 1× USB-C DEVICE [USB Type C, 24-pin female] |
| 2× USB-A DEVICE [USB Type A, 9-pin female] |
| Outputs: 1× HDBT-USB3 [RJ45 connector, 24V PoC] |
| Control: 1× RS-232 [3pin-3.5mm phoenix connector] |
| 1× FSYNC [1pin-3.5mm phoenix connector] |
| 1× SERVICE [USB Type C, firmware update port] |

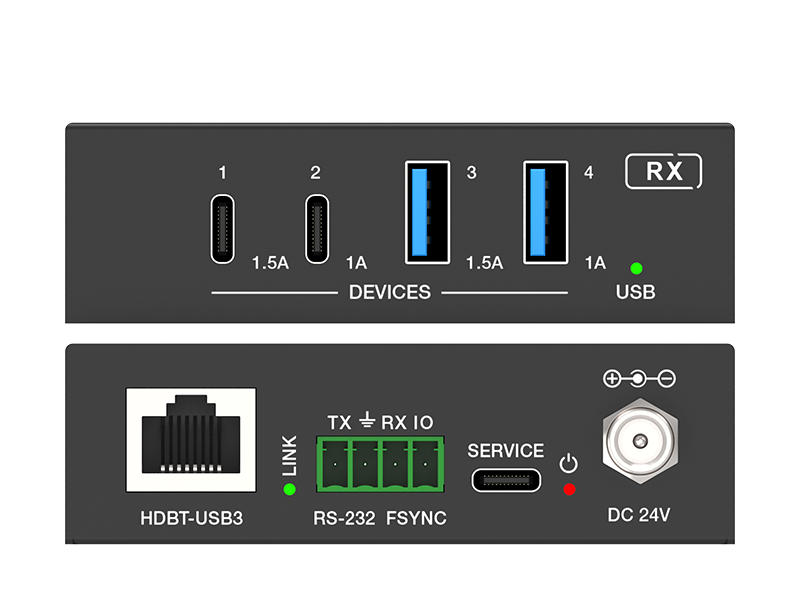

| Receiver |
| Input: 1× HDBT-USB3 [RJ45 connector, 24V PoC] |
| Output: 2× USB-A DEVICE [USB Type A, 9-pin female] |
| 2× USB-C DEVICE [USB Type C, 24-pin female] |
| Control: 1× RS-232 [3pin-3.5mm phoenix connector] |
| 1× FSYNC [1pin-3.5mm phoenix connector] |
| 1× SERVICE [USB Type C, firmware update port] |
| Mechanical |
| Housing |
| Metal Enclosure |
| Color |
| Black |
| Dimensions |
| TX / RX: 100mm [W] × 85mm [D] × 25.5mm [H] |
| Weight |
| TX: 265g; RX: 275g |
| Power Supply |
| Input: AC 100~240V 50/60Hz |
| Output: DC 24V/3.75A |
| Power Consumption |
| TX: 23W (Max); RX: 35W (Max); |
| TX+RX: 68W (Max, including line loss) |
| Operating Temperature |
| 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature |
| -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity 20%~80% relative humidity, non-condensing |
| Storage Humidity 10%~90% relative humidity, non-condensing |
- 1 x Transmitter
- 1 x Receiver
- 1 x User Manual
- 1 x DC Power Adapter
