Video over IP System Control Box
Video over IP System Control Box

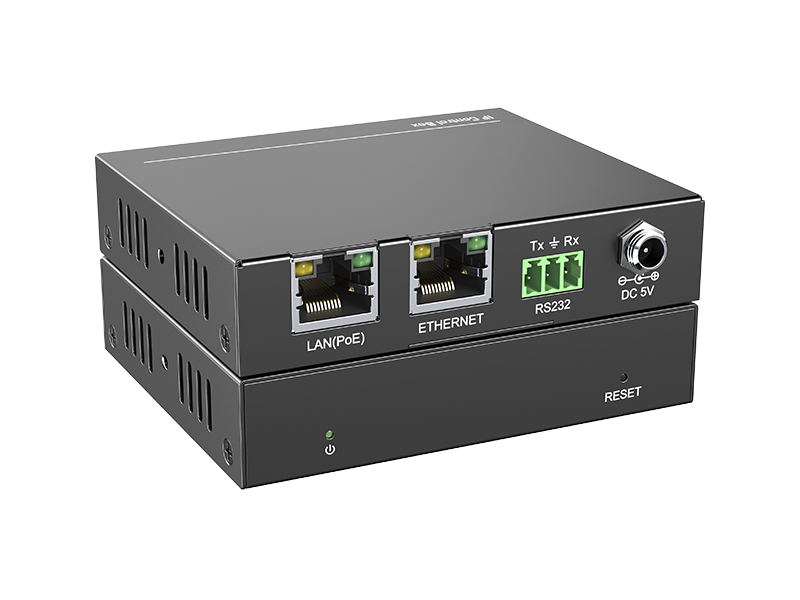

The IPS-CB1 is a control box which installed Web Control Server for controlling IPS500 series by GUI. The web based GUI is used to configure and control signal extension, routing and switching between IPS500 encoder and decoder units. When connect the control box to the LAN system of IPS500 encoders and decoders, use any PC in this LAN can access the GUI control interface.
- HDCP 2.2 compliant
- Support video resolution up to 4K2K@30Hz, as specified in HDMI 1.4
- Support 10.2Gbps video bandwidth
- The maximum transmission distance via a single CAT5e/6 cable is: 70 meters: 1080P@60Hz/36bit; 3D 1080P@30Hz/36bit; 40 meters: 1080P@60Hz/48bit; 1080P@120Hz/24bit; 3D 1080P@60Hz/36bit; 4K2K@30Hz/24bit.
- Support POC (Power Over Cable) function, it means that either the transmitter or receiver is connected to 12V/1A power supply, the other doesn’t need power supply.
- With bi-directional IR and RS-232 control signal pass-through
- Compact design for easy and flexible installation
- Built in web control server for online control;
- Control and management using the Web UI, Telnet;
- Dual LAN Ports: Enabling connectivity to additional devices;
- This AV system controller compatible with IPS500 encoder/decoder;
- Auto protocol, IP address distribution and management;
- Support power by local adapter or PoE.
